IC brand: SILAN

IC Model Number: AP5901 AP5901 V0.0中文.rar

Features:

1. The peripheral circuit is simple

2. Floating charging pressure accuracy can reach ±1%

3. Integrated 1A linear charging, 1A boost output, battery indicator, quiet control box lithium battery protection

4. Boost efficiency can reach more than 90%
5. Load overcurrent and short circuit protection
6. Automatic indication after fault indication and elimination

7. Input section short circuit protection

8. Four grid indication

9.LED flashlight function, the maximum flash current can be 60mA

10. Plug and unplug the automatic charging function

11.TSSOP16 package

Application areas:

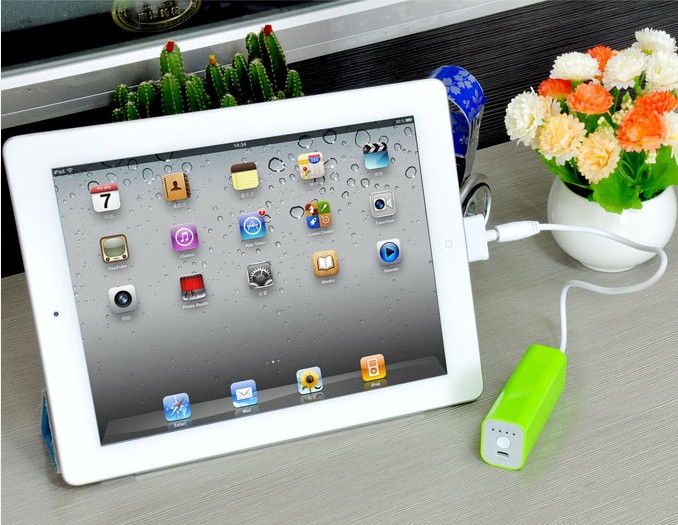

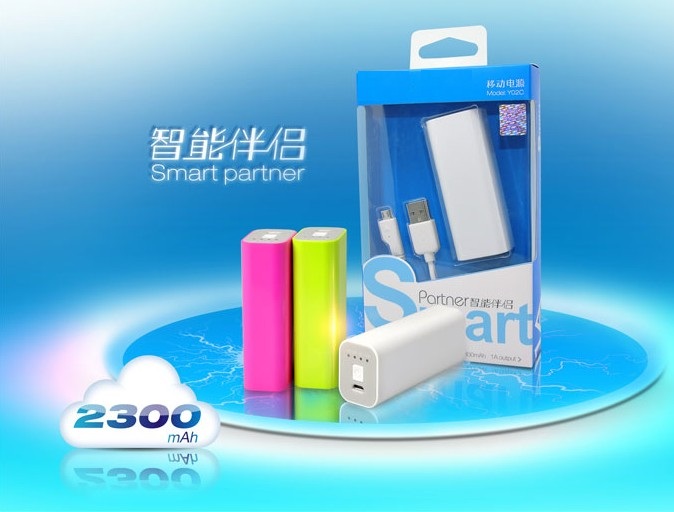

Mobile power

2.IPAD, MID backup power supply
